Android solution (optional for PC)
Based on the concept of harmonious coexistence between humans, products, and the natural environment, it is fashionable, practical, and exquisite in appearance. This product combines stable and reliable industrial grade product performance with the advantages of fashionable, practical and exquisite appearance, and can be widely used in various industries such as manufacturing, medical, advertising, education, media playback, traffic control, information systems, financial equipment, automotive, military, etc.
Product features:
Industrial grade LED panel with 50000 backlight lifespan
Resistance/multi touch capacitive screen optional
● Supports Turbo Boost technology
● The system memory supports a maximum of 8GB DDR3 SDRAM

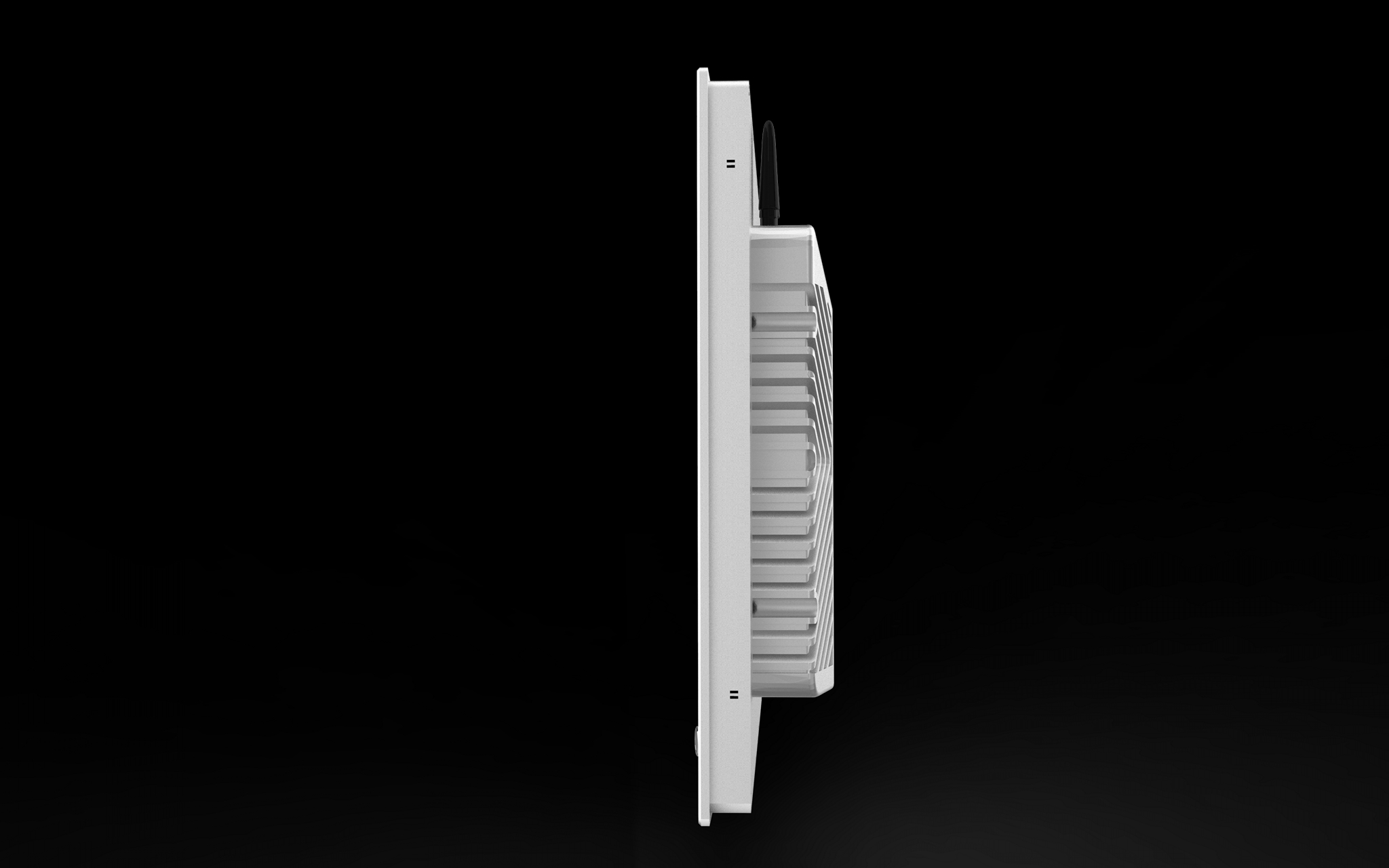

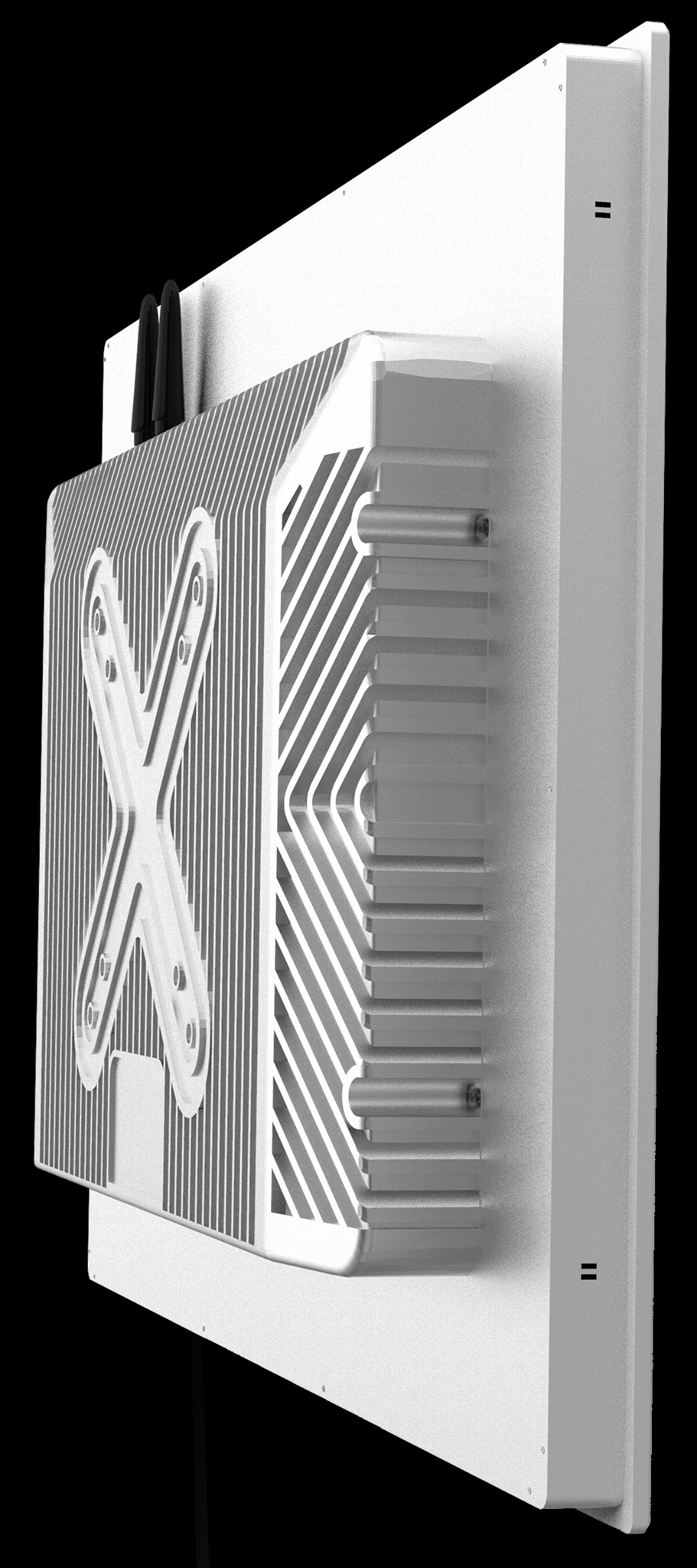

Fully enclosed, fanless, silent, dustproof, thickened aluminum alloy heat dissipation
● Front panel protection level IP65
● Supports dual display (1x external HDMI, 1x external VGA)
● Supports full size Mini PCIe expansion
● Supports USB 3.0
● Supports VESA 100
Configuration parameter processor Ruixin Micro RK 3568 quad core 2.0GHz
Hard disk 64G
Memory 8GB
Wireless support for WI FI-2.4G, BT-4.1
Configuration supports card reading+scanning+front USB+prompt light+front switch
Operating System Android 11
Display parameters; Screen size: 15.6 inches
Screen ratio: 4:3 (H: V)
Resolution: 1024 (RGB) x 768 [XGA] 85PPI
Contrast: 1000:1 (Typ.) (Transmission)
Grey scale response: 13/5 (Typ.) (Tr/Td) ms
Visual angle: 88/88/88/88 (Typ.) (CR ≥ 10)
Point spacing: 0.099 x 0.297 mm (H x V)
Brightness: 500 cd/m ² (Typ.)
Touch parameters; Touch screen: Original industrial TP capacitor touch screen
Touch life: ≥ 50 million times
Touch force: 1g-250g
Surface hardness: ≥ 6H
Touch mode: capacitive multi touch
Linear error:<1.5%
Glass type: chemically reinforced organic glass
Other parameters: Shell material: cold-rolled metal sheet+aluminum alloy
Color: Black
Installation methods: internal/external embedded, wall mounted, desktop, VESA standard support arm
Power performance: 12V external power supply, 110V-240V, 50-60Hz
Working temperature: -10 ° C~60 ° C
Storage temperature: -20~60 ° C
Working current: ≤ 5A
Power consumption: 20W
Interface: MI PI MI PI-CSI、Dual LVDS、EDP、PWM、SPI、UART、ADC、GPIO、I2C、I2S
Warranty: 1 year for the entire machine
